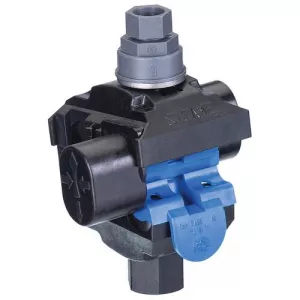

BTC4/0-10, B-TAP Insulation Piercing Tap Connector, Main 4/0-3, Tap 2-10
Features:
- Breakaway torque nut snaps off when UL torque requirements are met
- Second nut remains for easy connector removal
- Self-insulated housing eliminates the need for tape. Safely installs on energized systems
- Grease-filled end cap seals end of conductor for superior weather protection
- Grease-filled boots protect copper teeth from corrosion and prevent arcing
- Hardened copper teeth pierce insulation and bite into conductors
- Rated to 90°C and 600V
- Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
Safe, dependable and easy. The Buchanan B-TAP® Insulation Piercing Connector offers a breakaway torque nut that guarantees a perfect connection every time, no more guesswork. It simply snaps off when UL torque requirements are met. The grease-filled rubber end caps provide superior water and corrosion resistance, while the insulationpiercing design eliminates downtime and power interruptions. That translates into a 60% installed cost savings compared to split bolts. Installation is easy; all you need is a standard socket or wrench. B-TAP® Connectors can be safely installed on energized systems, eliminating power interruptions and downtime.
