Product Overview
Quick Highlights
- Aqua-Flo part number 06125000-1040

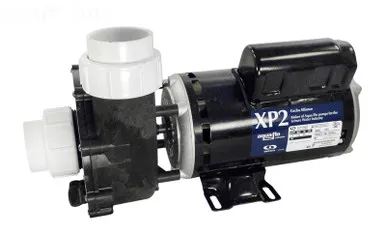

- Flo-Master XP2 spa pump
- Standard 48 frame motors
- Maximum cost efficiency
- High volumetric volute design
- Whisper quiet operation
- Fine tuned impeller for maximum efficiency
- Flow rate 220 GPM
- True, continuous rated horsepower of 2.5
- Total rated horsepower of 4.0
- Accepts 2″ Plumbing
- Inside Ports Measure 2-3/8″
- Outside Threads Measure 3″
- 2 speeds
- 230 Volt
Product Description
The Aqua-Flo 06125000-1040 XP2 spa pumps easily outperform every other 48 frame pump on the market while utilizing the same space requirements. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today’s large, many-jetted spas requiring increased flow.
Replaces the following pump models:06625312-2 Sunbelt Spas06625395-2 Belize Spa Turn Wet End To 9’o clock06625775-2 Dynasty06125474-20662539706625499-2 Dynasty Spas06625792-206625705-206626315-206625449-206625685-2 Nordic Spa06625485-2 Tuned To 3 o’clock position06625489-2 4.8 SPL Garden Leisure Spas06625395-206625894-106125275-1 Coleman Spas06625451-2 Nordic Spas06626462-206525082-106625509-206625080-106625770-2 4.8 SPL06125395-206625887-1 Turned to 3:0006525689-206626462-506625797-206625396-2 Master Spas06625894-1 Emerald Spas06125395-204006525690-206526397-20602506625279-206125283-01-00-0093B06525794-206525082-206025834-606525466-2 4.8 SPL06626327-206625000-106625000-106625002-206625174-106625606-106625287-106625499-206625894-l06625488-2
Technical Specs
Suction Connection Size: 2″Connection Type: MBTDischarge Connection Size: 2″Connection Type: MBTOperational Horsepower: 2.5 HPTotal Horsepower: 4 HPMotor Speed: 2-SpeedMotor Frame: 48 FrameMotor Amperage: 10.7A/3.2AMotor Voltage: 230VModel: XP2Impeller Number: 91694251
